Private ARO Cluster with Access via JumpHost

This article was originally published at https://cloud.redhat.com/experts/aro/private-cluster/

A Quickstart guide to deploying a Private Azure Red Hat OpenShift cluster.

Prerequisites

Azure CLI

Obviously you’ll need to have an Azure account to configure the CLI against.

MacOS

See Azure Docs for alternative install options.

Install Azure CLI using homebrew

brew update && brew install azure-cli

Install sshuttle using homebrew

brew install sshuttle

Linux

See Azure Docs for alternative install options.

Import the Microsoft Keys

sudo rpm --import https://packages.microsoft.com/keys/microsoft.asc

Add the Microsoft Yum Repository

cat << EOF | sudo tee /etc/yum.repos.d/azure-cli.repo
[azure-cli]
name=Azure CLI
baseurl=https://packages.microsoft.com/yumrepos/azure-cli
enabled=1
gpgcheck=1
gpgkey=https://packages.microsoft.com/keys/microsoft.asc
EOF

Install Azure CLI

sudo dnf install -y azure-cli sshuttle

Prepare Azure Account for Azure OpenShift

Log into the Azure CLI by running the following and then authorizing through your Web Browser

az login

Make sure you have enough Quota (change the location if you’re not using East US)

az vm list-usage --location "East US" -o table

See Addendum – Adding Quota to ARO account if you have less than 36 Quota left for Total Regional CPUs

az provider register -n Microsoft.RedHatOpenShift --wait
az provider register -n Microsoft.Compute --wait
az provider register -n Microsoft.Storage --wait
az provider register -n Microsoft.Authorization --wait

Get Red Hat pull secret

Log into cloud.redhat.com
Browse to https://cloud.redhat.com/openshift/install/azure/aro-provisioned
click the Download pull secret button and remember where you saved it, you’ll reference it later.

Deploy Azure OpenShift

Variables and Resource Group

Set some environment variables to use later, and create an Azure Resource Group.

Set the following environment variables

export AZR_RESOURCE_LOCATION=eastus
export AZR_RESOURCE_GROUP=openshift-private
export AZR_CLUSTER=private-cluster
export AZR_PULL_SECRET=~/Downloads/pull-secret.txt
export NETWORK_SUBNET=10.0.0.0/20
export CONTROL_SUBNET=10.0.0.0/24
export MACHINE_SUBNET=10.0.1.0/24
export FIREWALL_SUBNET=10.0.2.0/24
export JUMPHOST_SUBNET=10.0.3.0/24

Create an Azure resource group

az group create                \
  --name $AZR_RESOURCE_GROUP   \
  --location $AZR_RESOURCE_LOCATION

Create an Azure Service Principal

AZ_SUB_ID=$(az account show --query id -o tsv)
AZ_SP_PASS=$(az ad sp create-for-rbac -n "${AZR_CLUSTER}-SP" --role contributor \
  --scopes "/subscriptions/${AZ_SUB_ID}/resourceGroups/${AZR_RESOURCE_GROUP}" \
  --query "password" -o tsv)
AZ_SP_ID=$(az ad sp list --display-name "${AZR_CLUSTER}-SP" --query "[0].appId" -o tsv)

Networking

Create a virtual network with two empty subnets

Create virtual network

az network vnet create                                    \
  --address-prefixes $NETWORK_SUBNET                      \
  --name "$AZR_CLUSTER-aro-vnet-$AZR_RESOURCE_LOCATION"   \
  --resource-group $AZR_RESOURCE_GROUP

Create control plane subnet

az network vnet subnet create                                     \
  --resource-group $AZR_RESOURCE_GROUP                            \
  --vnet-name "$AZR_CLUSTER-aro-vnet-$AZR_RESOURCE_LOCATION"      \
  --name "$AZR_CLUSTER-aro-control-subnet-$AZR_RESOURCE_LOCATION" \
  --address-prefixes $CONTROL_SUBNET

Create machine subnet

az network vnet subnet create                                       \
  --resource-group $AZR_RESOURCE_GROUP                              \
  --vnet-name "$AZR_CLUSTER-aro-vnet-$AZR_RESOURCE_LOCATION"        \
  --name "$AZR_CLUSTER-aro-machine-subnet-$AZR_RESOURCE_LOCATION"   \
  --address-prefixes $MACHINE_SUBNET

az network vnet subnet update                                       \
  --name "$AZR_CLUSTER-aro-control-subnet-$AZR_RESOURCE_LOCATION"   \
  --resource-group $AZR_RESOURCE_GROUP                              \
  --vnet-name "$AZR_CLUSTER-aro-vnet-$AZR_RESOURCE_LOCATION"        \
  --disable-private-link-service-network-policies true

Egress

Public and Private clusters will have --outbound-type defined to LoadBalancer by default. It means all clusters by default have open egress to the internet through the public load balancer.

To change the default behavior and restrict the Internet Egress you have to set --outbound-type to UserDefinedRouting during cluster creation, and set up traffic to run through a Firewall solution.

1a. NAT Gateway

You can skip this step if you don’t need to restrict egress.

Create a Public IP

az network public-ip create -g $AZR_RESOURCE_GROUP \
  -n $AZR_CLUSTER-natgw-ip   \
  --sku "Standard" --location $AZR_RESOURCE_LOCATION

Create the NAT Gateway

az network nat gateway create \
  --resource-group ${AZR_RESOURCE_GROUP} \
  --name "${AZR_CLUSTER}-natgw" \
  --location ${AZR_RESOURCE_LOCATION} \
  --public-ip-addresses "${AZR_CLUSTER}-natgw-ip"

Get the Public IP of the NAT Gateway

GW_PUBLIC_IP=$(az network public-ip show -g ${AZR_RESOURCE_GROUP} \
  -n "${AZR_CLUSTER}-natgw-ip" --query "ipAddress" -o tsv)

echo $GW_PUBLIC_IP

Reconfigure Subnets to use Nat GW

az network vnet subnet update \
  --name "${AZR_CLUSTER}-aro-control-subnet-${AZR_RESOURCE_LOCATION}"   \
  --resource-group ${AZR_RESOURCE_GROUP}                              \
  --vnet-name "${AZR_CLUSTER}-aro-vnet-${AZR_RESOURCE_LOCATION}"        \
  --nat-gateway "${AZR_CLUSTER}-natgw"

az network vnet subnet update \
  --name "${AZR_CLUSTER}-aro-machine-subnet-${AZR_RESOURCE_LOCATION}"   \
  --resource-group ${AZR_RESOURCE_GROUP}                              \
  --vnet-name "${AZR_CLUSTER}-aro-vnet-${AZR_RESOURCE_LOCATION}"        \
  --nat-gateway "${AZR_CLUSTER}-natgw"

1b. Firewall + Internet Egress

You can skip this step if you don’t need to restrict egress.

Make sure you have the AZ CLI firewall extensions

az extension add -n azure-firewall
az extension update -n azure-firewall

Create a firewall network, IP, and firewall

az network vnet subnet create                                 \
  -g $AZR_RESOURCE_GROUP                                      \
  --vnet-name "$AZR_CLUSTER-aro-vnet-$AZR_RESOURCE_LOCATION"  \
  -n "AzureFirewallSubnet"                                    \
  --address-prefixes $FIREWALL_SUBNET

az network public-ip create -g $AZR_RESOURCE_GROUP -n fw-ip   \
  --sku "Standard" --location $AZR_RESOURCE_LOCATION

az network firewall create -g $AZR_RESOURCE_GROUP             \
  -n aro-private -l $AZR_RESOURCE_LOCATION

Configure the firewall and configure IP Config (this may take 15 minutes)

az network firewall ip-config create -g $AZR_RESOURCE_GROUP    \
  -f aro-private -n fw-config --public-ip-address fw-ip        \
  --vnet-name "$AZR_CLUSTER-aro-vnet-$AZR_RESOURCE_LOCATION"

FWPUBLIC_IP=$(az network public-ip show -g $AZR_RESOURCE_GROUP -n fw-ip --query "ipAddress" -o tsv)
FWPRIVATE_IP=$(az network firewall show -g $AZR_RESOURCE_GROUP -n aro-private --query "ipConfigurations[0].privateIPAddress" -o tsv)

echo $FWPUBLIC_IP
echo $FWPRIVATE_IP

Create and configure a route table

az network route-table create -g $AZR_RESOURCE_GROUP --name aro-udr

sleep 10

az network route-table route create -g $AZR_RESOURCE_GROUP --name aro-udr \
  --route-table-name aro-udr --address-prefix 0.0.0.0/0                   \
  --next-hop-type VirtualAppliance --next-hop-ip-address $FWPRIVATE_IP

az network route-table route create -g $AZR_RESOURCE_GROUP --name aro-vnet   \
  --route-table-name aro-udr --address-prefix 10.0.0.0/16 --name local-route \
  --next-hop-type VirtualNetworkGateway

Create firewall rules for ARO resources

az network firewall network-rule create -g $AZR_RESOURCE_GROUP -f aro-private \
    --collection-name 'allow-https' --name allow-all                          \
    --action allow --priority 100                                             \
    --source-addresses '*' --dest-addr '*'                                    \
    --protocols 'Any' --destination-ports 1-65535

Update the subnets to use the Firewall

az network vnet subnet update -g $AZR_RESOURCE_GROUP            \
--vnet-name $AZR_CLUSTER-aro-vnet-$AZR_RESOURCE_LOCATION        \
--name "$AZR_CLUSTER-aro-control-subnet-$AZR_RESOURCE_LOCATION" \
--route-table aro-udr

az network vnet subnet update -g $AZR_RESOURCE_GROUP            \
--vnet-name $AZR_CLUSTER-aro-vnet-$AZR_RESOURCE_LOCATION        \
--name "$AZR_CLUSTER-aro-machine-subnet-$AZR_RESOURCE_LOCATION" \
--route-table aro-udr

Create the cluster

This will take between 30 and 45 minutes.

az aro create                                                            \
--resource-group $AZR_RESOURCE_GROUP                                     \
--name $AZR_CLUSTER                                                      \
--vnet "$AZR_CLUSTER-aro-vnet-$AZR_RESOURCE_LOCATION"                    \
--master-subnet "$AZR_CLUSTER-aro-control-subnet-$AZR_RESOURCE_LOCATION" \
--worker-subnet "$AZR_CLUSTER-aro-machine-subnet-$AZR_RESOURCE_LOCATION" \
--apiserver-visibility Private                                           \
--ingress-visibility Private                                             \
--pull-secret @$AZR_PULL_SECRET                                          \
--client-id "${AZ_SP_ID}"                                                \
--client-secret "${AZ_SP_PASS}"

Be sure to add the --outbound-type UserDefinedRouting flag if you are not using the default routing.

Jump Host

With the cluster in a private network, we can create a Jump host in order to connect to it. You can do this while the cluster is being created.

Create jump subnet

az network vnet subnet create                                \
  --resource-group $AZR_RESOURCE_GROUP                       \
  --vnet-name "$AZR_CLUSTER-aro-vnet-$AZR_RESOURCE_LOCATION" \
  --name JumpSubnet                                          \
  --address-prefixes $JUMPHOST_SUBNET                        \
  --service-endpoints Microsoft.ContainerRegistry

Create a jump host

az vm create --name jumphost                 \
    --resource-group $AZR_RESOURCE_GROUP     \
    --ssh-key-values $HOME/.ssh/id_rsa.pub   \
    --admin-username aro                     \
    --image "RedHat:RHEL:9_1:9.1.2022112113" \
    --subnet JumpSubnet                      \
    --public-ip-address jumphost-ip          \
    --public-ip-sku Standard                 \
    --vnet-name "$AZR_CLUSTER-aro-vnet-$AZR_RESOURCE_LOCATION"

Save the jump host public IP address

JUMP_IP=$(az vm list-ip-addresses -g $AZR_RESOURCE_GROUP -n jumphost -o tsv \
--query '[].virtualMachine.network.publicIpAddresses[0].ipAddress')
echo $JUMP_IP

Use sshuttle to create a ssh vpn via the jump host (use a separate terminal session)

sshuttle --dns -NHr "aro@${JUMP_IP}" $NETWORK_SUBNET

Get OpenShift console URL

APISERVER=$(az aro show              \
--name $AZR_CLUSTER                  \
--resource-group $AZR_RESOURCE_GROUP \
-o tsv --query apiserverProfile.url)
echo $APISERVER

Get OpenShift credentials

ADMINPW=$(az aro list-credentials    \
--name $AZR_CLUSTER                  \
--resource-group $AZR_RESOURCE_GROUP \
--query kubeadminPassword            \
-o tsv)

Log into OpenShift

oc login $APISERVER --username kubeadmin --password ${ADMINPW}

Delete Cluster

Once you’re done its a good idea to delete the cluster to ensure that you don’t get a surprise bill.

Delete the cluster

az aro delete -y                       \
  --resource-group $AZR_RESOURCE_GROUP \
  --name $AZR_CLUSTER

Delete the Azure resource group

Only do this if there’s nothing else in the resource group.

az group delete -y \
  --name $AZR_RESOURCE_GROUP

Addendum

Adding Quota to ARO account

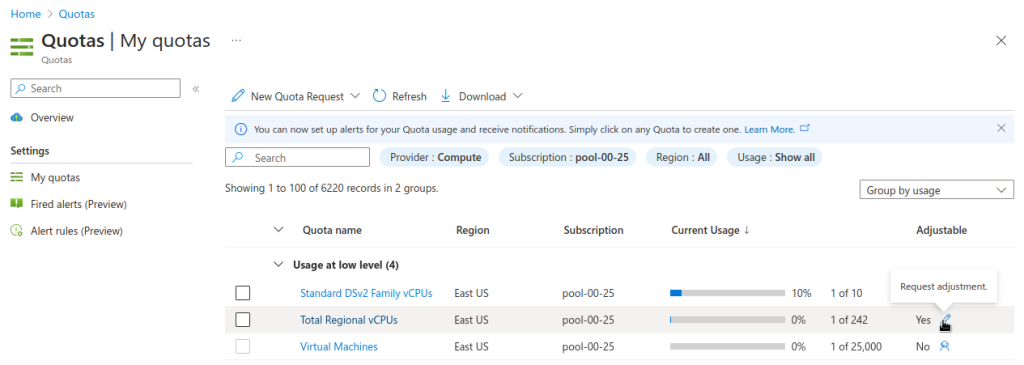

Visit My Quotas in the Azure Console
Choose the appropriate filters:
1. Set Provider to “Compute”
2. Set Subscription to the subscription you are creating the cluster in
3. Set Region to “East US” and uncheck the other region boxes
Search for the quota name that you want to increase.
Next to the quota name you wish to increase, click the pencil in the Adjustable column to request adjustment
Enter the new desired quota in the New limit text box. By default, a cluster will need 36 additional Regional vCPUs beyond current usage.
Click Submit. You may need to go through additional authentication.
Azure will review your request to adjust your quota. This may take several minutes.

Prerequisites#

Azure CLI#

Prepare Azure Account for Azure OpenShift#

Get Red Hat pull secret#

Deploy Azure OpenShift#

Variables and Resource Group#

Networking#

Egress#

1a. NAT Gateway#

1b. Firewall + Internet Egress#

Create the cluster#

Jump Host#

Delete Cluster#

Addendum#

Adding Quota to ARO account#
