Azure Front Door with ARO (Azure Red Hat OpenShift)

This article was originally published at Azure Front Door with ARO ( Azure Red Hat OpenShift ) | Red Hat Cloud Experts

Securing exposing an Internet facing application with a private ARO Cluster.

When you create a cluster on ARO you have several options in making the cluster public or private. With a public cluster you are allowing Internet traffic to the api and *.apps endpoints. With a private cluster you can make either or both the api and .apps endpoints private.

How can you allow Internet access to an application running on your private cluster where the .apps endpoint is private? This document will guide you through using Azure Frontdoor to expose your applications to the Internet. There are several advantages of this approach, namely your cluster and all the resources in your Azure account can remain private, providing you an extra layer of security. Azure FrontDoor operates at the edge so we are controlling traffic before it even gets into your Azure account. On top of that, Azure FrontDoor also offers WAF and DDoS protection, certificate management and SSL Offloading just to name a few benefits.

Adopted from ARO Reference Architecture

Prerequisites

az cli
oc cli
a custom domain
a DNS zone that you can easily modify

To build and deploy the application:

Make sure to use the same terminal session while going through guide for all commands as we will reference environment variables set or created through the guide.

Get Started

Create a private ARO cluster. Follow this guide to Create a private ARO cluster or simply run this bash script

Set Environment Variables

Manually set environment variables

AROCLUSTER=<cluster name>
ARORG=<resource group for the cluster>
AFD_NAME=<name you want to use for the front door instance>
DOMAIN='e.g. aro.kmobb.com'
ARO_APP_FQDN='e.g. minesweeper.aro.kmobb.com'
AFD_MINE_CUSTOM_DOMAIN_NAME='minesweeper-aro-kmobb-com'
PRIVATEENDPOINTSUBNET_PREFIX='10.0.6.0/24'
PRIVATEENDPOINTSUBNET_NAME='PrivateEndpoint-subnet'

Set environment variables with Bash

UNIQUEID=$RANDOM

ARO_RGNAME=$(az aro show -n $AROCLUSTER -g $ARORG --query "clusterProfile.resourceGroupId" -o tsv | sed 's/.*\///')

LOCATION=$(az aro show --name $AROCLUSTER --resource-group $ARORG --query location -o tsv)

INTERNAL_LBNAME=$(az network lb list --resource-group $ARO_RGNAME --query "[? contains(name, 'internal')].name" -o tsv)

WORKER_SUBNET_NAME=$(az aro show --name $AROCLUSTER --resource-group $ARORG --query 'workerProfiles[0].subnetId' -o tsv | sed 's/.*\///')

WORKER_SUBNET_ID=$(az aro show --name $AROCLUSTER --resource-group $ARORG --query 'workerProfiles[0].subnetId' -o tsv)

VNET_NAME=$(az network vnet list -g $ARORG --query '[0].name' -o tsv)

LBCONFIG_ID=$(az network lb frontend-ip list -g $ARO_RGNAME --lb-name $INTERNAL_LBNAME --query "[? contains(subnet.id,'$WORKER_SUBNET_ID')].id" -o tsv)

LBCONFIG_IP=$(az network lb frontend-ip list -g $ARO_RGNAME --lb-name $INTERNAL_LBNAME --query "[? contains(subnet.id,'$WORKER_SUBNET_ID')].privateIPAddress" -o tsv)

Create a Private Link Service

After we have the cluster up and running, we need to create a private link service. The private link service will provide private and secure connectivity between the Front Door Service and our cluster.

Disable the worker subnet private link service network policy for the worker subnet

az network vnet subnet update \
--disable-private-link-service-network-policies true \
--name $WORKER_SUBNET_NAME \
--resource-group $ARORG \
--vnet-name $VNET_NAME

Create a private link service targeting the worker subnets

az network private-link-service create \
--name $AROCLUSTER-pls \
--resource-group $ARORG \
--private-ip-address-version IPv4 \
--private-ip-allocation-method Dynamic \
--vnet-name $VNET_NAME \
--subnet $WORKER_SUBNET_NAME \
--lb-frontend-ip-configs $LBCONFIG_ID

privatelink_id=$(az network private-link-service show -n $AROCLUSTER-pls -g $ARORG --query 'id' -o tsv)

Create and Configure an instance of Azure Front Door

Create a Front Door Instance

az afd profile create \
--resource-group $ARORG \
--profile-name $AFD_NAME \
--sku Premium_AzureFrontDoor

afd_id=$(az afd profile show -g $ARORG --profile-name $AFD_NAME --query 'id' -o tsv)

Create an endpoint for the ARO Internal Load Balancer

az afd endpoint create \
--resource-group $ARORG \
--enabled-state Enabled \
--endpoint-name 'aro-ilb'$UNIQUEID \
--profile-name $AFD_NAME

Create a Front Door Origin Group that will point to the ARO Internal Loadbalancer

az afd origin-group create \
--origin-group-name 'afdorigin' \
--probe-path '/' \
--probe-protocol Http \
--probe-request-type GET \
--probe-interval-in-seconds 100 \
--profile-name $AFD_NAME \
--resource-group $ARORG \
--probe-interval-in-seconds 120 \
--sample-size 4 \
--successful-samples-required 3 \
--additional-latency-in-milliseconds 50

Create a Front Door Origin with the above Origin Group that will point to the ARO Internal Loadbalancer

az afd origin create \
--enable-private-link true \
--private-link-resource $privatelink_id \
--private-link-location $LOCATION \
--private-link-request-message 'Private link service from AFD' \
--weight 1000 \
--priority 1 \
--http-port 80 \
--https-port 443 \
--origin-group-name 'afdorigin' \
--enabled-state Enabled \
--host-name $LBCONFIG_IP \
--origin-name 'afdorigin' \
--profile-name $AFD_NAME \
--resource-group $ARORG

Approve the private link connection

privatelink_pe_id=$(az network private-link-service show -n $AROCLUSTER-pls -g $ARORG --query 'privateEndpointConnections[0].id' -o tsv)

az network private-endpoint-connection approve \
--description 'Approved' \
--id $privatelink_pe_id

Add your custom domain to Azure Front Door

az afd custom-domain create \
--certificate-type ManagedCertificate \
--custom-domain-name $AFD_MINE_CUSTOM_DOMAIN_NAME \
--host-name $ARO_APP_FQDN \
--minimum-tls-version TLS12 \
--profile-name $AFD_NAME \
--resource-group $ARORG

Create an Azure Front Door endpoint for your custom domain

az afd endpoint create \
--resource-group $ARORG \
--enabled-state Enabled \
--endpoint-name 'aro-mine-'$UNIQUEID \
--profile-name $AFD_NAME

Add an Azure Front Door route for your custom domain

az afd route create \
--endpoint-name 'aro-mine-'$UNIQUEID \
--forwarding-protocol HttpOnly \
--https-redirect Disabled \
--origin-group 'afdorigin' \
--profile-name $AFD_NAME \
--resource-group $ARORG \
--route-name 'aro-mine-route' \
--supported-protocols Http Https \
--patterns-to-match '/*' \
--custom-domains $AFD_MINE_CUSTOM_DOMAIN_NAME

Update DNS - Get a validation token from Front Door

afdToken=$(az afd custom-domain show \
--resource-group $ARORG \
--profile-name $AFD_NAME \
--custom-domain-name $AFD_MINE_CUSTOM_DOMAIN_NAME \
--query "validationProperties.validationToken" \
-o tsv)

Create a DNS Zone

az network dns zone create -g $ARORG -n $DOMAIN

You will need to configure your nameservers to point to azure. The output of running this zone create will show you the nameservers for this record that you will need to set up within your domain registrar.

Create a new text record in your DNS server

az network dns record-set txt add-record -g $ARORG -z $DOMAIN -n _dnsauth.$(echo $ARO_APP_FQDN | sed 's/\..*//') --value $afdToken --record-set-name _dnsauth.$(echo $ARO_APP_FQDN | sed 's/\..*//')

Check if the domain has been validated:

Note this can take several hours. Your FQDN will not resolve until Front Door validates your domain.

az afd custom-domain list -g $ARORG --profile-name $AFD_NAME --query "[? contains(hostName, '$ARO_APP_FQDN')].domainValidationState"

Add a CNAME record to DNS

Get the Azure Front Door endpoint:

afdEndpoint=$(az afd endpoint show -g $ARORG --profile-name $AFD_NAME --endpoint-name aro-mine-$UNIQUEID --query "hostName" -o tsv)

Create a cname record for the application

az network dns record-set cname set-record -g $ARORG -z $DOMAIN \
 -n $(echo $ARO_APP_FQDN | sed 's/\..*//') -z $DOMAIN -c $afdEndpoint

Deploy an application

Now the fun part, let’s deploy an application! We will be deploying a Java based application called microsweeper. This is an application that runs on OpenShift and uses a PostgreSQL database to store scores. With ARO being a first class service on Azure, we will create an Azure Database for PostgreSQL service and connect it to our cluster with a private endpoint.

Create an Azure Database for PostgreSQL servers service

az postgres server create --name microsweeper-database --resource-group $ARORG --location $LOCATION --admin-user quarkus --admin-password r3dh4t1! --sku-name GP_Gen5_2

POSTGRES_ID=$(az postgres server show -n microsweeper-database -g $ARORG --query 'id' -o tsv)

Create a private endpoint connection for the database

az network vnet subnet create \
--resource-group $ARORG \
--vnet-name $VNET_NAME \
--name $PRIVATEENDPOINTSUBNET_NAME \
--address-prefixes $PRIVATEENDPOINTSUBNET_PREFIX \
--disable-private-endpoint-network-policies true

az network private-endpoint create \
--name 'postgresPvtEndpoint' \
--resource-group $ARORG \
--vnet-name $VNET_NAME \
--subnet $PRIVATEENDPOINTSUBNET_NAME \
--private-connection-resource-id $POSTGRES_ID \
--group-id 'postgresqlServer' \
--connection-name 'postgresdbConnection'

Create and configure a private DNS Zone for the Postgres database

az network private-dns zone create \
--resource-group $ARORG \
--name 'privatelink.postgres.database.azure.com'

az network private-dns link vnet create \
--resource-group $ARORG \
--zone-name 'privatelink.postgres.database.azure.com' \
--name 'PostgresDNSLink' \
--virtual-network $VNET_NAME \
--registration-enabled false

az network private-endpoint dns-zone-group create \
--resource-group $ARORG \
--name 'PostgresDb-ZoneGroup' \
--endpoint-name 'postgresPvtEndpoint' \
--private-dns-zone 'privatelink.postgres.database.azure.com' \
--zone-name 'postgresqlServer'

NETWORK_INTERFACE_ID=$(az network private-endpoint show --name postgresPvtEndpoint --resource-group $ARORG --query 'networkInterfaces[0].id' -o tsv)

POSTGRES_IP=$(az resource show --ids $NETWORK_INTERFACE_ID --api-version 2019-04-01 --query 'properties.ipConfigurations[0].properties.privateIPAddress' -o tsv)

az network private-dns record-set a create --name $UNIQUEID-microsweeper-database --zone-name privatelink.postgres.database.azure.com --resource-group $ARORG

az network private-dns record-set a add-record --record-set-name $UNIQUEID-microsweeper-database --zone-name privatelink.postgres.database.azure.com --resource-group $ARORG -a $POSTGRES_IP

Create a postgres database that will contain scores for the minesweeper application

az postgres db create \
--resource-group $ARORG \
--name score \
--server-name microsweeper-database

Deploy the minesweeper application

Clone the git repository

git clone https://github.com/rh-mobb/aro-workshop-app.git

Change to the root directory

cd aro-workshop-app

Log into your openshift cluster

Before you deploy your application, you will need to be connected to a private network that has access to the cluster.

kubeadmin_password=$(az aro list-credentials --name $AROCLUSTER --resource-group $ARORG --query kubeadminPassword --output tsv)

apiServer=$(az aro show -g $ARORG -n $AROCLUSTER --query apiserverProfile.url -o tsv)

oc login $apiServer -u kubeadmin -p $kubeadmin_password

Create a new OpenShift Project

oc new-project minesweeper

Add the openshift extension to quarkus

quarkus ext add openshift

Edit microsweeper-quarkus/src/main/resources/application.properties

Make sure your file looks like the one below, changing the IP address on line 3 to the private IP address of your postgres instance.

# Database configurations
%prod.quarkus.datasource.db-kind=postgresql
%prod.quarkus.datasource.jdbc.url=jdbc:postgresql://10.1.6.9:5432/score
%prod.quarkus.datasource.jdbc.driver=org.postgresql.Driver
%prod.quarkus.datasource.username=quarkus@microsweeper-database
%prod.quarkus.datasource.password=r3dh4t1!
%prod.quarkus.hibernate-orm.database.generation=drop-and-create
%prod.quarkus.hibernate-orm.database.generation=update

# OpenShift configurations
%prod.quarkus.kubernetes-client.trust-certs=true
%prod.quarkus.kubernetes.deploy=true
%prod.quarkus.kubernetes.deployment-target=openshift
%prod.quarkus.openshift.build-strategy=docker

Build and deploy the quarkus application to OpenShift

quarkus build --no-tests

Create a route to your custom domain

cat << EOF | oc apply -f -
apiVersion: route.openshift.io/v1
kind: Route
metadata:
  labels:
    app.kubernetes.io/name: microsweeper-appservice
    app.kubernetes.io/version: 1.0.0-SNAPSHOT
    app.openshift.io/runtime: quarkus
  name: microsweeper-appservice
  namespace: minesweeper
spec:
  host: minesweeper.aro.kmobb.com
  to:
    kind: Service
    name: microsweeper-appservice
    weight: 100
    targetPort:
      port: 8080
  wildcardPolicy: None
EOF

Check the dns settings of your application

nslookup $ARO_APP_FQDN

Test the application

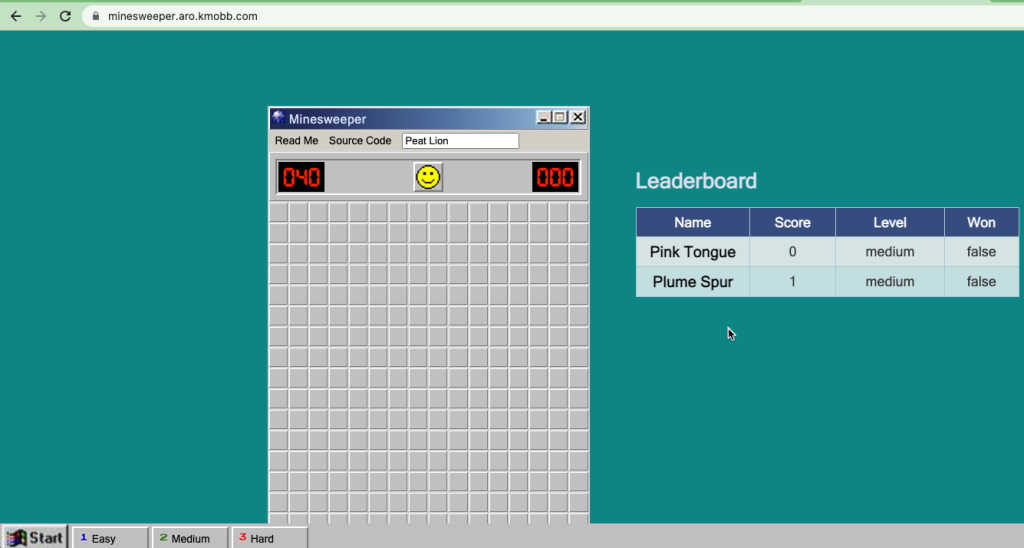

Point your browser to your domain!

Clean up

To clean up everything you created, simply delete the resource group

az group delete -g $ARORG
