When you configure an Azure Red Hat OpenShift (ARO) cluster with a private only configuration, you will need connectivity to this private network in order to access your cluster. This guide will show you how to configute a point-to-site VPN connection so you won’t need to setup and configure Jump Boxes.

Prerequisites

  • a private ARO Cluster
  • git
  • openssl

Create certificates to use for your VPN Connection

There are many ways and methods to create certificates for VPN, the guide below is one of the ways that works well. Note, that whatever method you use, make sure it supports “X509v3 Extended Key Usage”.

1. Clone OpenVPN/easy-rsa

Bash
git clone https://github.com/OpenVPN/easy-rsa.git

2. Change to the easyrsa directory

Bash
cd easy-rsa/easyrsa3

3. Initialize the PKI

Bash
./easyrsa init-pki

4. Edit certificate parameters

Copy the sample values file

Bash
cp pki/vars.example pki/vars

Uncomment and edit the copied template with your values

Bash
vim pki/vars
Bash
set_var EASYRSA_REQ_COUNTRY   "US"
set_var EASYRSA_REQ_PROVINCE  "California"
set_var EASYRSA_REQ_CITY      "San Francisco"
set_var EASYRSA_REQ_ORG       "Copyleft Certificate Co"
set_var EASYRSA_REQ_EMAIL     "me@example.net"
set_var EASYRSA_REQ_OU        "My Organizational Unit"

Uncomment (remove the #) the folowing field

Bash
#set_var EASYRSA_KEY_SIZE        2048

5. Create the CA:

Bash
./easyrsa build-ca nopass

6. Generate the Server Certificate and Key

Bash
./easyrsa build-server-full server nopass

7. Generate Diffie-Hellman (DH) parameters

Bash
./easyrsa gen-dh

8. Generate client credentials

Bash
./easyrsa build-client-full azure nopass

9. Set environment variables for the CA certificate you just created.

Bash
CACERT=$(openssl x509 -in pki/ca.crt -outform der | base64)

Set Envrionment Variables

Bash
AROCLUSTER=<cluster name>
ARORG=<resource group the cluster is in>
UNIQUEID=$RANDOM
LOCATION=$(az aro show --name $AROCLUSTER --resource-group $ARORG --query location -o tsv)
VNET_NAME=$(az network vnet list -g $ARORG --query '[0].name' -o tsv)
GW_NAME=${USER}_${VNET_NAME}
GW_SUBNET_PREFIX=e.g. 10.0.7.0/24 choose a new available subnet in the VNET your cluster is in.
VPN_PREFIX=172.18.0.0/24

Create an Azure Virtual Network Gateway

1. Request a public IP Address

    Bash
    az network public-ip create \
-n $USER-pip-$UNIQUEID \
-g $ARORG \
--allocation-method Static \
--sku Standard \
--zone 1 2 3

pip=$(az network public-ip show -g $ARORG --name $USER-pip-$UNIQUEID --query "ipAddress" -o tsv)

    2. Create a Gateway Subnet

    Bash
    az network vnet subnet create \
--vnet-name $VNET_NAME \
-n GatewaySubnet \
-g $ARORG \
--address-prefix $GW_SUBNET_PREFIX

    3. Create a virtual network gateway

    Bash
    az network vnet-gateway create \
--name  $GW_NAME \
--location $LOCATION \
--public-ip-address $USER-pip-$UNIQUEID \
--resource-group $ARORG \
--vnet $VNET_NAME \
--gateway-type Vpn \
--sku VpnGw3AZ \
--address-prefixes $VPN_PREFIX \
--root-cert-data pki/ca.crt \
--root-cert-name $USER-p2s \
--vpn-type RouteBased \
--vpn-gateway-generation Generation2 \
--client-protocol IkeV2 OpenVPN

    go grab a coffee, this takes about 15 – 20 minutes

    Configure your OpenVPN Client

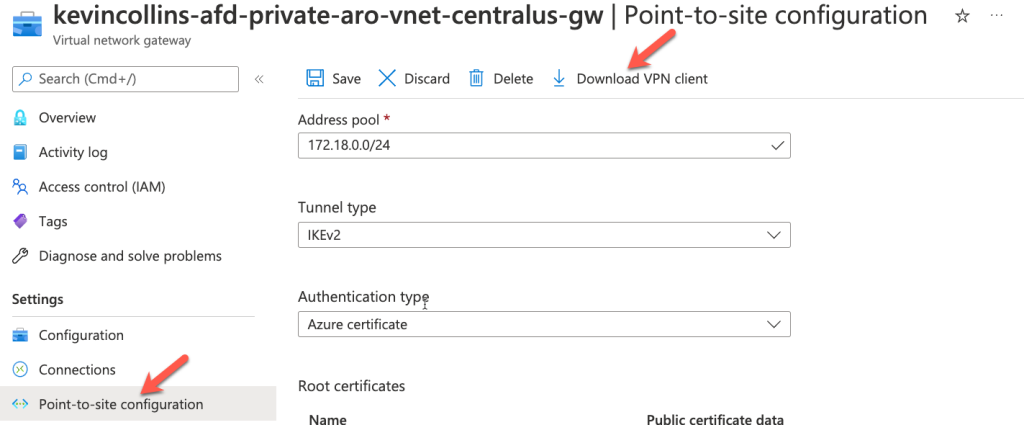

    1. Retrieve the VPN SettingsFrom the Azure Portal – navigate to your Virtual Network Gateway, point to site configuration, and then click Download VPN Client.

      This will download a zip file containing the VPN Client

      2. Create a VPN Client Configuration

      Uncompress the file you downloaded in the previous step and edit the OpenVPN\vpnconfig.ovpn file.

      Note: The next two commands assume you are still in the easyrsa3 directory.

      In the vpnconfig.ovpn replace the $CLIENTCERTIFICATE line with the entire contents of:

      Bash
      openssl x509 -in pki/issued/azure.crt

      Make sure to copy the —–BEGIN CERTIFICATE—– and the —–END CERTIFICATE—– lines.

      Also replace $PRIVATEKEY line with the output of:

      Bash
      cat pki/private/azure.key

      Make sure to copy the —–BEGIN PRIVATE KEY—– and the —–END PRIVATE KEY—– lines.

      3. Add the new OpenVPN configuration file to your OpenVPN client.

      mac users – just double click on the vpnserver.ovpn file and it will be automatically imported.

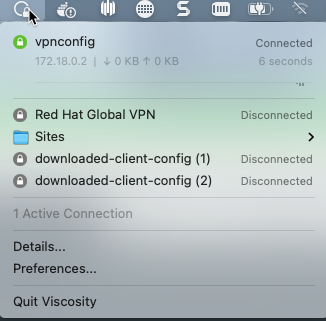

      4. Connect your VPN.
